Split Core Current Probe - CP2

The RF Current Prove CP2 was designed for more convenient pre-compliance measurements compared to the CP1 closed aperture current probe. A split core allows for a quick changing between several cables. As shown below, the characteristics are comparable to the CP1 probe.

The current probe can be purchased via Lectronz

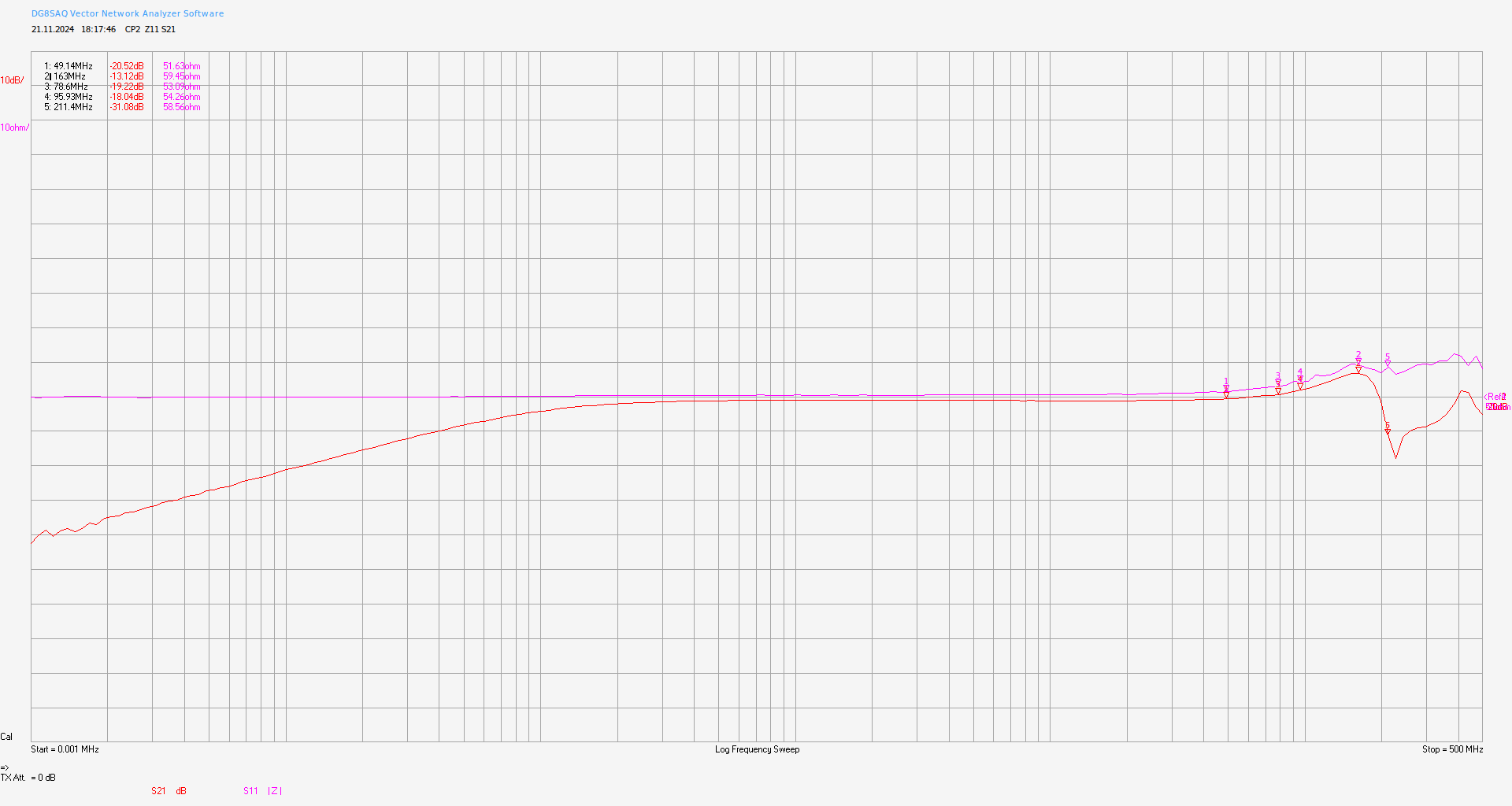

Typical Performance

As shown above, this simple probe is perfectly usable for typical EMC measurements from 150k-30MHz. There is headroom in the design to fit various measurement applications up to 100MHz.

Last updated 2024-11-21
